Precision-engineered magnetic platforms spanning 30 kVA oil-immersed distribution units to 230 kV grid transformers and ultra-low loss toroidal/planar solutions.
Founded with engineering heritage in Barcelona, Spain, Premium PSU has delivered over 1,000 custom magnetics and power conversion designs across 5 continents. We serve global original equipment manufacturers (OEMs) and tier-1 system integrators in high-demand sectors such as rolling stock railway, high-tech machinery, renewable energy storage, and electrical substations.
Understanding the design trade-offs between core geometry, cooling mediums, dielectric insulation, and total cost of ownership (TCO) is essential when specifying custom OEM power transformers.
| Transformer Topology | Typical Power Range | Cooling / Dielectric Medium | Core Loss Profile | Primary Industrial Applications | Key Standard Compliance |
|---|---|---|---|---|---|

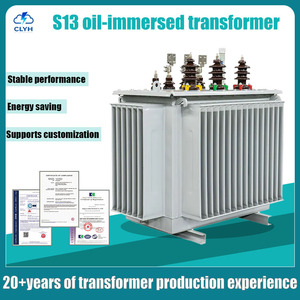

| Oil-Immersed Distribution | 30 kVA – 3,000 kVA | Mineral Oil / Synthetic Ester (ONAN/ONAF) | Ultra-Low No-Load Loss (CRGO Steel) | Utility Distribution, Industrial Plants, Outdoor Substations | IEC 60076, IEEE C57.12, CE |
| High-Voltage Substation Transformer | 10 MVA – 75+ MVA | Forced Oil & Air Flow (OFAF/ODAF) | Optimized Core & Eddy Current Mitigation | Regional Grid Interconnection, Renewable Plant Coupling | IEC 60076-1, ISO 9001, ANSI |

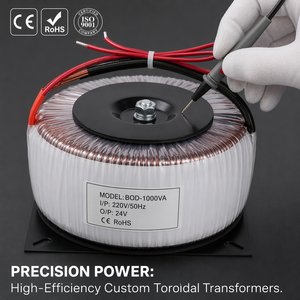

| Toroidal Ring Core Transformer | 50 VA – 5,000 VA | Air Natural (Convection / Encapsulated) | Extremely Low Magnetic Stray Field | Precision Audio, Industrial Automation, Medical Isolation | EN 61558, CE, RoHS |

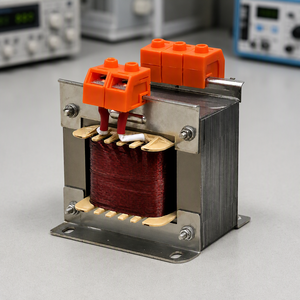

| Dry-Type Control Transformer (JBK5) | 100 VA – 10 kVA | VPI Epoxy Resin / Dry Air Natural | Compact High Thermal Endurance | CNC Machine Tools, Control Cabinets, Switchgear Systems | UL 508, CE, IEC 61558-2-4 |

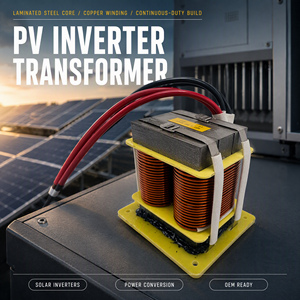

| Planar High-Frequency Transformer | 500 W – 50 kW | Conduction to Cold Plate / Forced Air | High Power Density, Low Leakage Inductance | Railway Inverters, Solar PV Energy Storage, EV Fast Charging | EN 50155, EN 45545-2 (Fire/Smoke) |
By utilizing cold-rolled grain-oriented (CRGO) silicon steel laminations along with step-lap mitred core joint techniques, our custom transformers reduce hysteresis losses by up to 28% compared to standard core assemblies. For high-frequency switching, custom ferrite and nanocrystalline alloys are integrated.
Operating temperatures directly correlate with transformer lifespan. We engineer thermal channels inside the winding geometry to avoid local hot-spots. Insulation options range from Class B (130°C) and Class F (155°C) to Class H (180°C) and Class C (220°C) Nomex insulation systems.
To ensure failure-free service over decades, every high-voltage transformer undergoes rigorous Partial Discharge (PD) screening in our high-voltage laboratory, ensuring PD levels remain below 10 pC at rated over-voltage stress tests.
The global energy transition, grid modernization, and high-frequency power electronics are accelerating technical shifts in custom OEM transformer manufacturing.
As silicon carbide (SiC) and gallium nitride (GaN) power switches enable switching frequencies above 100 kHz, traditional bulky 50/60 Hz transformers are being replaced by high-frequency planar and matrix transformer architectures. These custom magnetics achieve up to 5x higher power density while dramatically reducing raw material volume and copper weight.
Solar PV plants and battery energy storage systems (BESS) spend significant durations in zero-generation or standby modes. Next-generation OEM power transformers incorporate amorphous alloy core materials. Amorphous atomic core structures lack crystalline order, reducing no-load losses by up to 70-80% compared to conventional silicon steel cores.
Industrial power transformers are evolving from passive components into intelligent grid assets. By integrating optic-fiber hot-spot sensors, dissolved gas analysis (DGA) probes, dynamic temperature monitors, and wireless IoT communication gateways, plant operators can monitor health indicators in real-time.
Replacing traditional mineral oil with biodegradable synthetic ester transformer fluids elevates fire safety (K-class flashpoint > 300°C) and protects fragile eco-systems against oil spill contamination. Ester fluids also absorb moisture trapped in cellulose insulation, extending winding life.
Global supply chain volatility, raw material fluctuations, and stringent decarbonization targets require procurement executives to adopt forward-thinking sourcing strategies.
Procurement teams are shifting evaluation metrics from CAPEX (initial purchase cost) to Total Cost of Ownership (TCO). Because a power transformer operates continuously for 20 to 40 years, the cost of core and copper losses over its operational lifetime frequently exceeds the initial purchase price by multiple factors.
TCO Formula Insight: $TCO = A \times P_0 + B \times P_k + \text{Initial Cost}$, where $P_0$ represents no-load loss, $P_k$ represents load loss, and $A, B$ are loss evaluation factors based on electricity tariffs and operational duty cycle.
Long lead times for electrical steel and copper magnet wire have exposed vulnerabilities in long-distance supply chains. Forward-thinking OEMs are establishing long-term contracts with European suppliers who offer localized engineering support, rapid prototyping, and transparent material origin certification.
To eliminate single-source risks without incurring full engineering redevelopment costs, enterprise buyers are partnering with manufacturers who utilize standardized modular building blocks (such as pre-qualified planar magnetics and standardized bobbin structures) to streamline non-recurring engineering (NRE).
Sustainability mandates require equipment manufacturers to report supply chain embedded carbon. Choosing energy-efficient transformer suppliers with local manufacturing, recyclable copper windings, and eco-certified ester fluids simplifies ESG compliance reporting.
Our custom transformer platforms and high-reliability power systems are installed inside mission-critical assets operated by leading global brands.
Key technical and commercial answers to assist engineering leads, procurement managers, and system designers.
Consult directly with our experienced power magnetics engineering team in Barcelona. Share your input/output specs, operating thermal window, and footprint requirements for a rapid technical proposal.
