Engineered for high power density, fault tolerance, and long life cycles across medical, data center, outdoor telecom, and industrial automation environments.
Features ultra-safe Lithium Iron Phosphate (LiFePO4) chemistry providing 3,500+ deep cycles. Delivers clean 1200W pure sine wave output for continuous backup during grid outages.

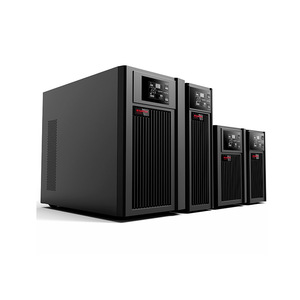

Zero transfer time true double-conversion online topology. Sinks grid fluctuations, harmonics, and sags to protect critical laboratory diagnostics and high-precision instruments.

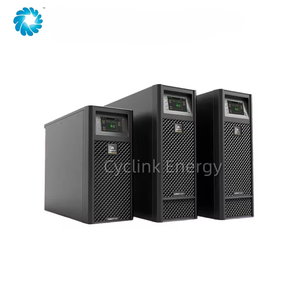

High-frequency digital control architecture with input power factor correction (>0.99). Ideal for enterprise IT racks, blade servers, and networking hardware hubs.
Fully encapsulated IP68 chassis engineered for extreme outdoor installations. Impervious to salt spray, humidity, fungus, and severe temperature swings from -40°C to +75°C.

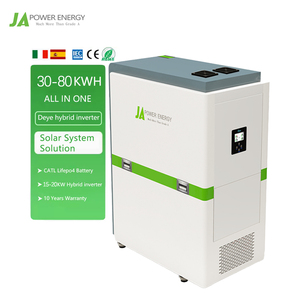

Heavy-duty commercial and residential microgrid storage. Integrated MPPT solar charging controllers, three-phase balance output, and multi-megawatt parallel expansion support.
Cost-optimized, robust OEM platform for global wholesale distribution. Configured with extended runtime battery packs and smart RS232/USB/SNMP communication cards.

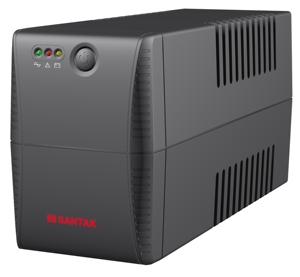

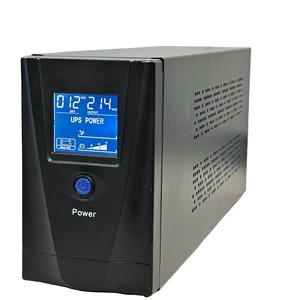

Compact line-interactive/offline backup system with Automatic Voltage Regulation (AVR). Protects desktop workstations, POS terminals, and edge networking node routers.
Reliable desktop power protection equipped with cold-start functionality, surge suppression banks, and intelligent battery health diagnostic routines.
As a premier OEM/ODM power conversion partner, we bridge the gap between initial customer specifications and certified, mass-produced power hardware. Operating with deep European power electronics heritage, our manufacturing framework eliminates technical risk.
Every UPS unit leaving our facility undergoes 100% full-load electrical testing, automated optical inspection (AOI), and individual functional verification reporting.
Trusted by Global Industry Leaders & Infrastructure Contractors
A strategic procurement roadmap for engineering directors, supply chain managers, and OEM system integrators navigating the next decade of power conversion requirements.
Procurement specifications are definitively shifting away from legacy Valve-Regulated Lead-Acid (VRLA) batteries to Lithium Iron Phosphate (LiFePO4) chemistry. B2B buyers now prioritize total cost of ownership (TCO) over initial capex. LiFePO4 offers 3x to 5x the operating cycle life (up to 10,000 cycles at 80% DoD), footprint reductions exceeding 60%, and thermal stability up to 60°C without thermal runaway risks. Modern procurement tenders increasingly penalize weight and replacement frequency.
High-frequency online UPS architectures are rapidly adopting Silicon Carbide (SiC) and Gallium Nitride (GaN) power switches. By operating at switching frequencies 5x higher than traditional Silicon IGBTs, power conversion efficiency moves past 97% in double-conversion mode. This drastic efficiency gain reduces passive magnetic component size (planar transformers and inductors), producing ultra-compact rackmount dimensions essential for edge computing infrastructure.
Single-point failure modes are unacceptable in modern data centers and critical industrial processes. B2B procurement strategies mandate modular, scalable N+1 or N+2 redundancy. Modular UPS systems allow power capacity expansion from 10kW to hundreds of kilowatts without disrupting load power. Hot-swappable power modules dramatically lower Mean Time to Repair (MTTR) to under 15 minutes, safeguarding operational continuity.
Geopolitical turbulence and component shortages have forced procurement leaders to diversify sourcing away from single-source commodity vendors. Winning procurement strategies involve partnering directly with agile OEM/ODM exporters capable of modular custom chassis development, specialized voltage pinouts (e.g., 110VDC railway or 750VDC catenary inputs), extended temperature sealing (IP65-IP68), and private-label firmware branding.
The boundary between backup power systems and energy storage systems (ESS) is blurring. Modern enterprise procurement looks for bidirectional grid-interactive UPS systems. These intelligent units feed stored battery energy back into the facility or utility grid during peak tariff hours (peak shaving) or participate in Virtual Power Plant (VPP) demand response programs, transforming backup hardware into a revenue-generating asset.
A deep engineering review of internal topologies, thermal management, software telemetry, and advanced material integration powering next-generation UPS platforms.
Traditional copper-wound transformers suffer from high proximity losses, high leakage inductance, and excessive physical bulk. Modern UPS designs utilize interleaved planar magnetics embedded directly into multi-layer printed circuit boards (PCBs). Paired with LLC resonant soft-switching power stages, switching losses are virtually eliminated at high frequencies. This enables dramatic volumetric power density increases while keeping thermal dissipation inside manageable cooling envelopes.
Static SNMP cards are giving way to integrated IoT edge gateways running onboard predictive maintenance algorithms. By continuously sampling electrolytic capacitor ESR, battery impedance, fan vibration profiles, and thermal gradient shifts, the UPS calculates its own Remaining Useful Life (RUL). Telemetry streams via secure MQTT or OPC-UA protocols directly to enterprise cloud dashboards, shifting maintenance schedules from reactive failure response to planned condition-based servicing.
Deploying UPS equipment in harsh environmental conditions—such as marine salt spray, desert solar farms, high-vibration railway cabs, or subterranean mines—requires abandoning forced-air fan cooling. Advanced outdoor UPS engineering leverages full aluminum conduction cooling block plates and IP68 hermetic encapsulation. Salt spray, mold, and conductive dust are completely blocked from critical electronics, ensuring 20+ year continuous operational lifespans under aggressive ambient extremes.
Direct technical answers addressing lead times, compliance certifications, custom engineering NRE, and lifecycle guarantees.
