Utilizes Advanced NPC 3-Level IGBT power switching technology, ensuring reduced switching losses, higher energy efficiency, lower electromagnetic noise, and extended thermal margin in continuous heavy-duty industrial environments.
Capable of dynamic 2nd to 50th order harmonic cancellation while concurrently providing stepless capacitive and inductive reactive power compensation and 3-phase load unbalance correction.
Unlike traditional passive L-C capacitor banks, active harmonic filters operate as controlled current sources, eliminating system resonance risks and protecting upstream transformers and switchgear from harmonic overload.
In modern industrial and commercial power distribution networks, the rapid proliferation of non-linear loads—such as Variable Frequency Drives (VFDs), Uninterruptible Power Supplies (UPS), arc furnaces, LED lighting systems, and solar grid-tied inverters—has dramatically escalated power quality degradation. Non-linear loads draw current in abrupt, non-sinusoidal pulses, injecting high-frequency harmonic currents back into the utility grid.
Without rigorous harmonic suppression engineered to meet IEEE 519-2022 and IEC 61000-3-12 standards, facilities face severe operational risks: premature transformer overheating, nuisance circuit breaker tripping, accelerated cable dielectric failure due to skin effect, neutral conductor burnouts, and micro-grid instability.
Harmonic mitigation solutions fall into two primary categories: Passive Harmonic Filters (PHF) and Active Harmonic Filters (AHF / APF). Choosing the optimal architecture requires an in-depth understanding of their underlying power electronics dynamics:
| Performance Criterion | Active Power Filter (APF / AHF) | Static Var Generator (SVG) | Passive Harmonic Filter (PHF) |
|---|---|---|---|
| Primary Function | Dynamic Harmonic Suppression (2nd-50th) | Dynamic Reactive Power (pf=1.0) | Tuned Harmonic Trap (Fixed Frequency) |
| Harmonic Mitigation Scope | Selectable 2nd to 50th Order (THDi < 3%) | Limited (Mainly fundamental reactive) | Single order tuning (e.g., 5th or 7th only) |
| Response Time | < 5ms (Fast FFT digital tracking) | < 5ms (Instantaneous vector control) | Passive response (Subject to LC delay) |
| Resonance Risk | Zero risk (Operates as controlled source) | Zero risk (No capacitor banks) | High risk of grid parallel resonance |
| Load Sensitivity | Insensitive to dynamic load swings | Insensitive to dynamic load swings | Highly sensitive; efficiency drops off-load |
| Installation Flexibility | Modular wall/rack mounted; Parallelable | Modular wall/rack mounted; Parallelable | Large physical footprint floor cabinet |
For large industrial manufacturing facilities with fluctuating inductive motor loads and high VFD concentration, deploying a hybrid dynamic power quality solution—combining a dedicated AHF module for harmonic filtering with an SVG module for smooth step-less reactive compensation—yields maximum power factor correction (> 0.99) while lowering capital expenditure (CapEx) by up to 30% compared to full-capacity APF sizing.
As a premiere China harmonic filter manufacturer and original equipment supplier, our power quality engineering team customizes filtering topology to match strict application standards across diverse industry sectors:

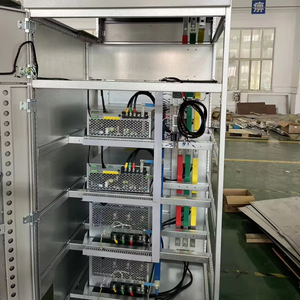

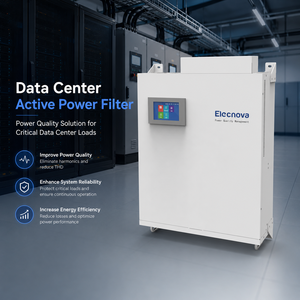

Modern data centers rely heavily on double-conversion online UPS systems, switch-mode power supplies (SMPS), and variable-speed precision cooling fans. These non-linear electronics generate strong 3rd, 5th, and 11th harmonic currents. Our Data Center Dedicated Active Harmonic Suppression Filter (15A-150A) delivers super-fast 5ms transient response, maintaining THDi below 3% under 15% to 100% partial load variations, preventing dangerous zero-sequence triplen harmonics from overloading the neutral bus bar.

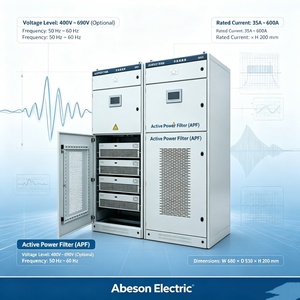

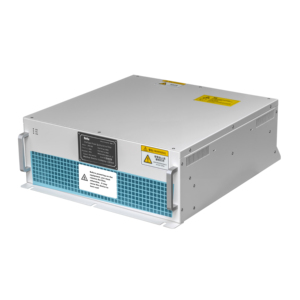

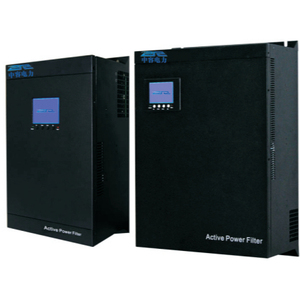

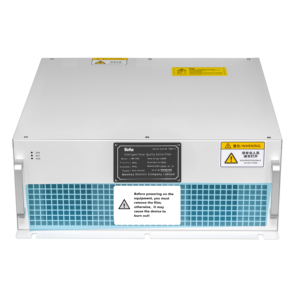

Automobile stamping plants, plastic extrusion lines, chemical processing plants, and steel rolling mills operate dozens of 6-pulse and 12-pulse VFDs. The resultant 5th, 7th, 11th, and 13th harmonics create high voltage distortion (THDv), destabilizing sensitive PLC logic controllers and causing thermal breakdown in motor windings. Wall-mounted and rack-mounted AHF units (400V / 690V) provide targeted harmonic extraction directly at the distribution board level.
Large-scale solar PV central inverters and wind turbine converters introduce complex background harmonics and dynamic reactive power fluctuations into the high-voltage utility grid. Utilizing our 690V industrial active power filters and SVG modules guarantees strict compliance with utility interconnection codes at the Point of Common Coupling (PCC).
Navigating global procurement in power electronics requires anticipating key technological shifts over the next decade. Buyers and electrical consultants should consider the following market transitions:
Next-generation active harmonic filters are rapidly incorporating SiC MOSFET switches. SiC technology enables switching frequencies exceeding 20 kHz (compared to 10 kHz - 12 kHz in conventional silicon IGBTs). This switch drastically reduces active power filter heat loss, shrinks internal passive magnetics size by 40%, and allows ultra-compact 19-inch rack-mount modular designs with power density exceeding 100A per 3U height.
Modern procurement standards are transitioning from standalone filtering hardware toward IoT-integrated power assets. Equipped with RS485 Modbus RTU, Ethernet, and cloud-gateway communication, our AHF systems feed high-speed wave analysis, thermal monitoring, and harmonic spectrum trends directly to enterprise energy management systems (EMS). Predictive analytics algorithms anticipate grid resonance anomalies and CT phase inversion errors before system failure occurs.
With corporate ESG targets and strict carbon neutrality mandates, utility companies worldwide are imposing stiffer financial penalties for harmonic current pollution and low power factor. Modular, low-loss active power filtering represents the most cost-effective retrofit strategy to safeguard energy usage efficiency, reduce line losses (I²R loss), and avoid utility surcharge penalties.
Partnering directly with a top-tier Chinese power electronics original equipment manufacturer guarantees superior structural quality, engineering flexibility, and direct factory technical support:
Contact our senior power electronics application engineers to review your single-line diagrams (SLD), calculate harmonic compensation requirements, or request customized OEM distribution pricing.
